51 22 330 Removing and installing/replacing window cavity cover strip on inside rear door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS serve as the basis for this repair instruction and must be observed without fail.

Necessary preliminary tasks

Remove REAR DOOR TRIM PANEL .

Pull front window cavity cover strip (1) off rear door.

Installation:

Moisten window cavity cover strip (1) prior to fitting with APPROVED LUBRICANT .

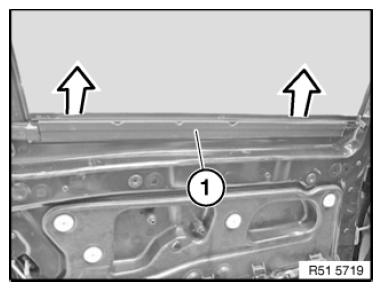

Fig 1: Pulling Front Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rear window cavity cover strip (1) off rear door.

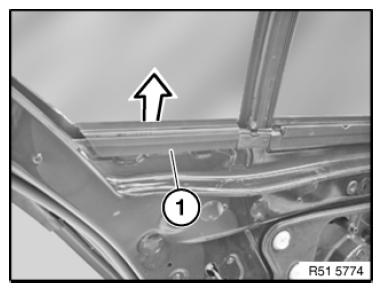

Fig 2: Pulling Rear Window Cavity Cover Strip Off Rear Door

Courtesy of BMW OF NORTH AMERICA, INC.
