51 42 000 Removing and installing left or right rear door trim panel

Special tools required:

• 00 9 321

Necessary preliminary tasks

• Remove DECORATIVE STRIP FROM DOOR TRIM PANEL

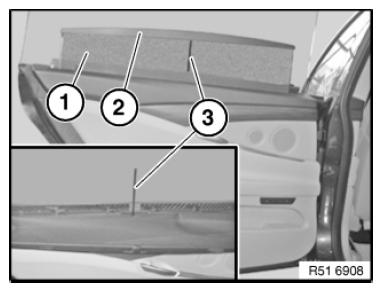

Completely extend roller sunblind (1).

Release pushrod (3) with 90° rotation from lifting gear and guide bracket (2)

Remove guide bracket (2).

Return roller sunblind (1) to casing.

Fig 1: Identifying Roller Sunblind, Guide Bracket And Pushrod

Courtesy of BMW OF NORTH AMERICA, INC.

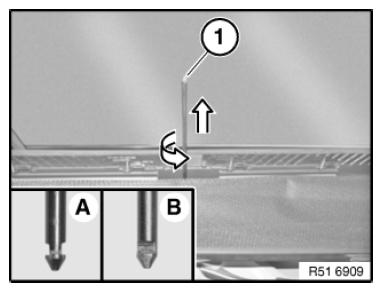

Remove pushrod (1) in direction of arrow.

1. Locked
2. Released

Installation:

Check pushrod (1) for latching in lifting gear.

Replace lifting gear if necessary.

Fig 2: Removing Pushrod

Courtesy of BMW OF NORTH AMERICA, INC.

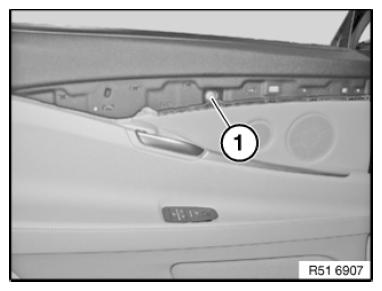

Release screws (1).

Tightening torque 51 42 1AZ .

Fig 3: Identifying Door Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

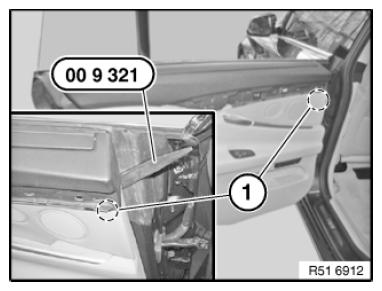

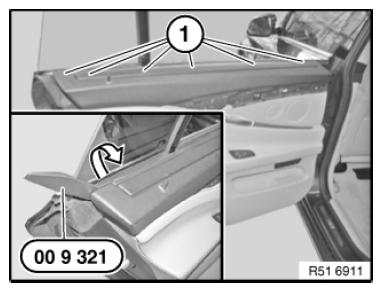

Starting in B-pillar area, unclip shoulder with special tool 00 9 321 from retainers (1).

Fig 4: Removing Shoulder From Retainers Using Special Tool (00 9 321)

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip retainer (1) with special tool 00 9 321 .

Fig 5: Removing Retainer Using Special Tool (00 9 321)

Courtesy of BMW OF NORTH AMERICA, INC.

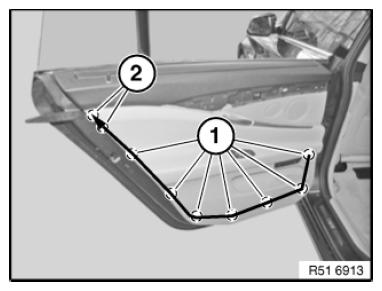

Unclip clips (1) in direction of arrow by gripping with hand.

Increased force for double clip (2).

Fig 6: Identifying Clips Removing Direction

Courtesy of BMW OF NORTH AMERICA, INC.

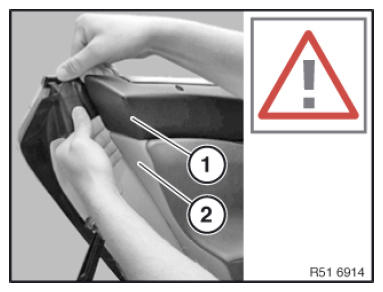

Fig 7: Caution For Grasping Shoulder And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Identifying Centre Retainer And Knob

Courtesy of BMW OF NORTH AMERICA, INC.

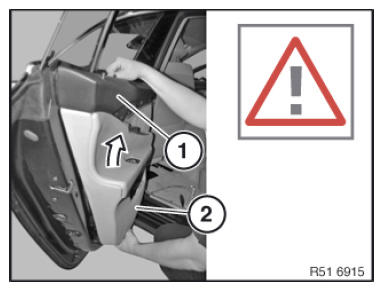

Fig 9: Removing Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable (1) for release lever first at counterholder (2) and then at door lock (3).

Unlock and disconnect all plug connections, then remove door trim panel.

Fig 10: Identifying Bowden Cable, Counterholder And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace clips (1), color: grey.

Check center retainer (2) for damage, replace if necessary.

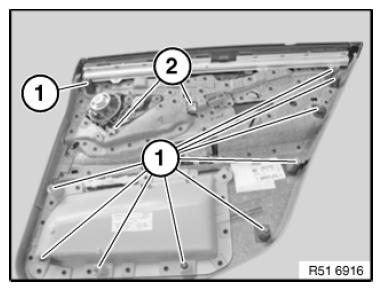

Fig 11: Identifying Centre Retainer And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

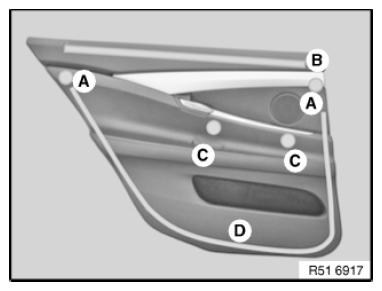

Fit door trim panel, make sure retainers are correctly seated and press down in sequence A - D.

Fig 12: Identifying Door Trim Panel Retainers Fitting Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

• Open door window
• Lock with ignition key
• Check for ease-of-movement on locking knob linkage
• If necessary, align linkage
