51 16 368 Replacing right glovebox with enclosure

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks

Remove DAMPER FOR GLOVEBOX .

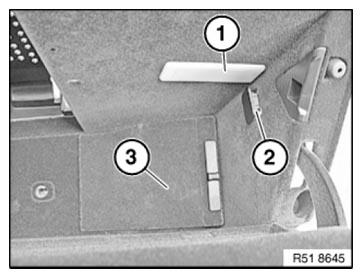

Modify glovebox light (1).

If necessary, modify cover (2)

Modify cover (3).

Fig 1: Identifying Glovebox Light And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

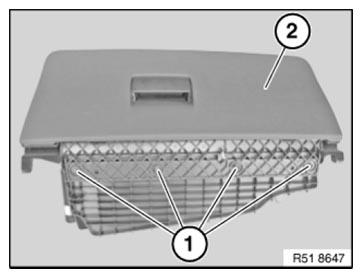

Release screws (1) on glovebox cover (2).

Remove glovebox cover (2).

Fig 2: Identifying Glovebox Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
