51 16 383 Removing and installing/replacing damper for glove box

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks

Remove RIGHT GLOVE BOX .

NOTE: For clarification purposes, the damper rod has already been removed from the retaining bracket of the glove box cover the graphic.

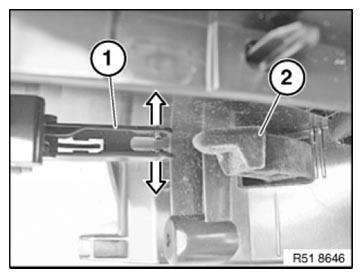

Unclip damper rod (1) in direction of arrow from retaining bracket of glove box cover (2) and slide back towards rear.

Fig 1: Removing Damper Rod

Courtesy of BMW OF NORTH AMERICA, INC.

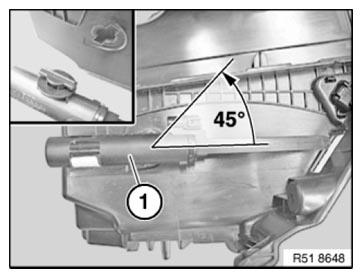

Turn damper (1) approx. 45° in direction of arrow and disconnect.

Fig 2: Turning Damper

Courtesy of BMW OF NORTH AMERICA, INC.
