51 16 190 Removing and installing / replacing lock cylinder in center armrest

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove CENTRE CONSOLE TRIM .

Remove front mat insert (1).

Installation:

Cleanly adjust rubber nipples and lugs of mat insert.

Fig 1: Identifying Front Mat Insert And Lock Carrier Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) of lock carrier (1)and remove lock carrier (1) toward the front.

Installation:

Make sure lock carrier (1) is properly seated.

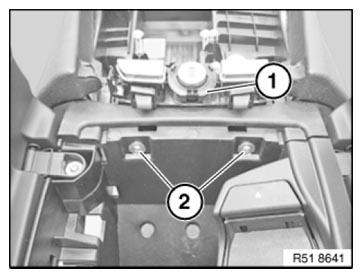

Fig 2: Identifying Lock Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
