51 16 160 Removing and installing center console cover

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Open cup holder sealing cap and pull out protective carpet (1) at tab (see arrow).

If necessary, first remove tray insert or ashtray.

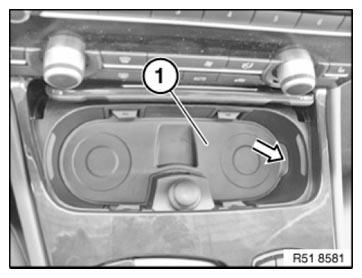

Fig 1: Pulling Out Protective Carpet At Tab

Courtesy of BMW OF NORTH AMERICA, INC.

Open both center console armrests.

Carefully lift off cover latch (1) by hand.

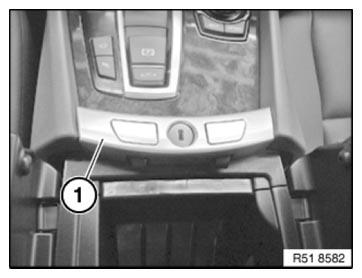

Fig 2: Identifying Cover Latch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Lightly screw in screws part way.

Tightening torque 51 16 9AZ .

Use adhesive tape to protect front decorative trim from damage.

Carefully lever out center console trim (2) at marked locations on left and right.

Continue to lift up center console trim (2) at rear at an angle and disconnect remaining plug connections.

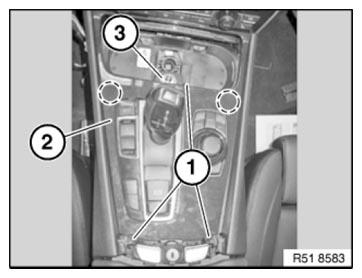

Fig 3: Identifying Centre Console Trim, 12-V Power Socket Insert And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift and push out 12-V power socket insert (3).

Carefully lift out center console trim (2).

Installation:

Replace defective retainers (1).

Make sure center console trim is seated correctly.

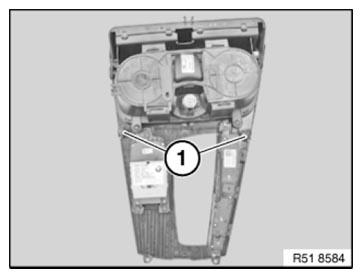

Fig 4: Identifying Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
