51 16 164 Replacing cover for rear center console
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary tasks
- Remove REAR CENTRE CONSOLE TRIM .

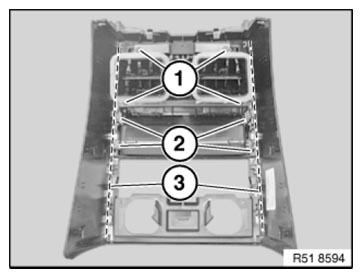

Release screws and modify fresh air grille (1).
Detach storage compartment (2) and modify.
Remove left and right decorative trim in the marked area (3) and modify.
Installation:
Check that fibreglass lines in decorative trim are properly clipped on. Install decorative trims flush. Retaining tabs and clips must not be damaged.
