51 16 163 Removing and installing/replacing rear center console trim

Special tools required:

• 00 9 325

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Move front seat forward.

Pull top trim panel (1) back and unclamp it on the left and right.

Installation:

Replace defective clamps (3)

Remove floor panel (2) from the bottom storage compartment.

Installation:

Correctly lock floor panel (rubber nipple).

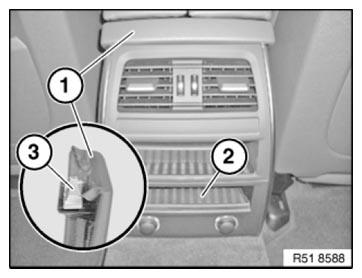

Fig 1: Identifying Trim Panel, Floor Panel And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully, lever out lower cover (1) in the center with special tool 00 9 325 in order to disengage the retention hooks (see mark) on the side.

Installation:

Slightly bend cover (1) and first run in lower retention hooks.

Upper retention hoods can be run in more easily if cover (1) is lightly pressed up from below.

Make sure catches (1) are correctly seated.

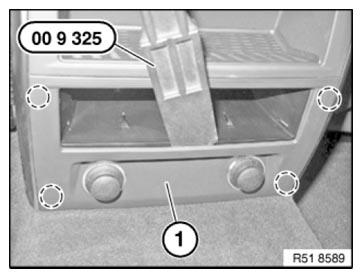

Fig 2: Removing Lower Cover Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) from charging sockets and set aside cover (2).

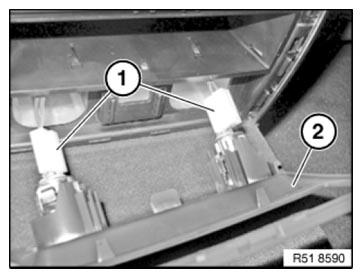

Fig 3: Identifying Plug Connections And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

For basic version:

Release screws (1).

Installation:

Make sure storage compartment is correctly adjusted.

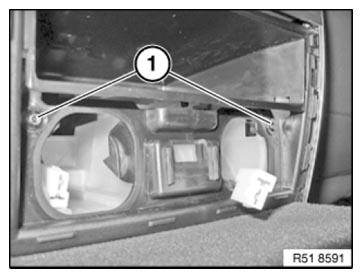

Fig 4: Identifying Storage Compartment Screws

Courtesy of BMW OF NORTH AMERICA, INC.

For rear seat entertainment system:

Release screws (1).

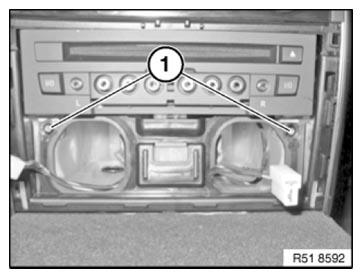

Fig 5: Identifying Rear Seat Entertainment System Screws

Courtesy of BMW OF NORTH AMERICA, INC.

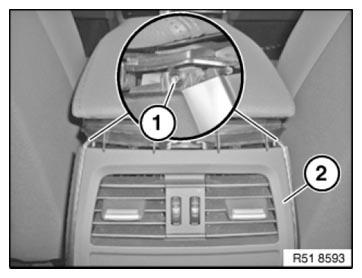

Release left and right screws (1).

Pull rear center console cover (2) back slightly and if necessary disconnect additional plug connections.

Remove rear center console trim panel (2).

Fig 6: Identifying Rear Centre Console Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
