51 16 040 Removing and installing/replacing housing on left or right exterior mirror

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove RETAINING RING ON EXTERIOR MIRROR .
Remove PROTECTIVE CAP ON EXTERIOR MIRROR .
Remove MIRROR ADJUSTMENT DRIVE .

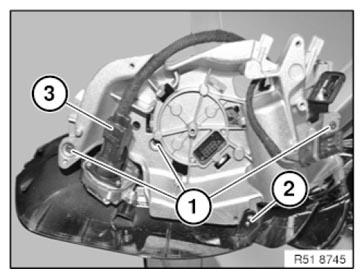

Release screws (1).

If necessary, disconnect the connector (3) from the Top View camera.

Installation note:

Ensure latch mechanism (2) is correctly seated.

Fig 1: Identifying Latch Mechanism, Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

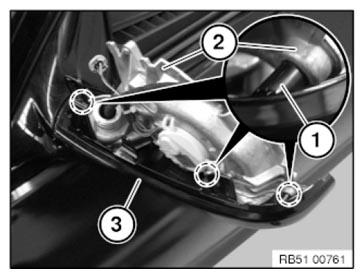

Carefully loosen screw holes (1) from exterior mirror (2).

Feed out housing (3) downward.

Fig 2: Identifying Screw Holes, Exterior Mirror And Housing

Courtesy of BMW OF NORTH AMERICA, INC.

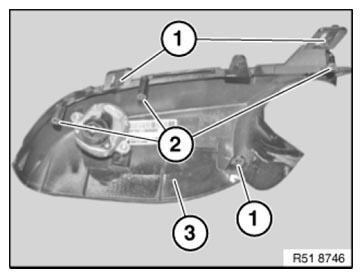

Catches (1) and screw holes (2) on housing (3) must not be damaged.

For replacement with Top View camera version

Move TOP VIEW CAMERA .

Fig 3: Identifying Catches And Screw Holes On Housing
Courtesy of BMW OF NORTH AMERICA, INC.
