51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary work

Remove MIRROR GLASS .

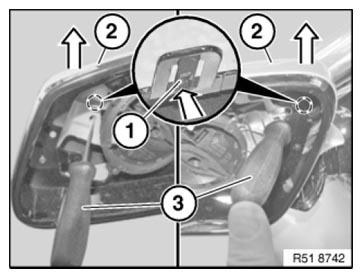

Release cover cap (2) at catches (1) using suitable tool (3).

Fig 1: Releasing Cover Cap At Catches Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cover cap (2) against falling off.

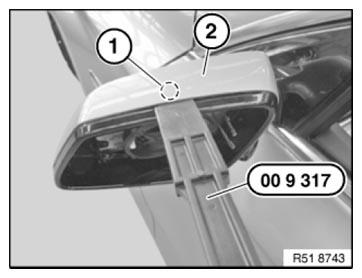

Release catch (1) using special tool 00 9 317 and carefully pull cover cap (2) upwards and remove.

Fig 2: Releasing Catch Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

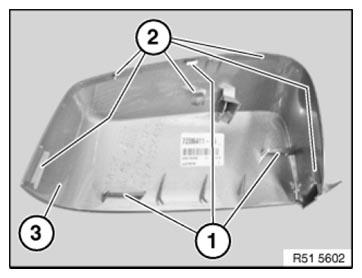

Catches (1) and guides (2) on cover cap (3) must not be damaged.

Fig 3: Identifying Cover Cap Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
