51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

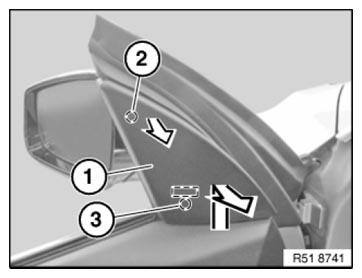

Unclip trim (1) from retaining clip (2) in inward direction.

Slide trim (1) upwards slightly out of guide (3) and remove.

NOTE: On version with speaker, trim (1) can remain hanging over door trim panel.

Installation:

Retaining clip (2) must be fitted on door.

Fig 1: Removing Trim From Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

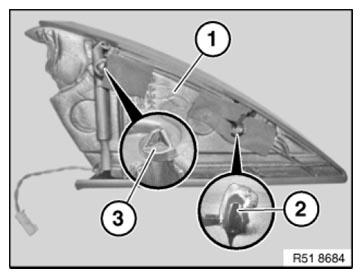

Following parts of trim must not be damaged or missing:

Sound insulation
Retaining clip
Guide

Fig 2: Identifying Sound Insulation, Retaining Clip And Guide
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Secure mirror against falling down.

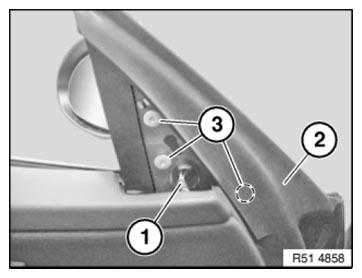

Disconnect plug connection (1).

Fold seal (2) to one side slightly and release screws (3).

Tightening torque 51 16 1AZ .

Installation:

Rubber grommet for plug connection (1) must be correctly seated on door.

Fig 3: Identifying Plug Connection, Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Seal (2) must be correctly seated on door trim panel and door.

Remove mirror (1) outwards.

Installation:

Check function.

Fig 4: Removing Mirror

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Change MIRROR GLASS or replace if necessary
Change exterior mirror HOUSING or replace if necessary.
