51 21 301 Removing and installing/replacing weather strip on outside of front door
WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
The "INSTRUCTIONS ON INSTALLATION OF WINDOW GUIDES " serve as the basis for this repair instructions and must be observed without fail.
Necessary preliminary tasks
- Remove MIRROR ON FRONT DOOR .

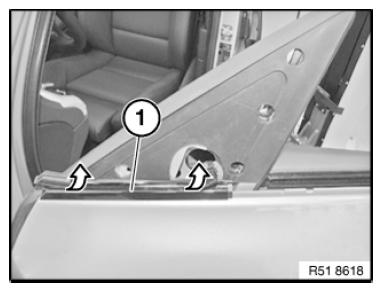

Carefully lever weather strip (1) out of door using special tool 00 9 322 .
Installation note:
Moisten weather strip (1) before installation with APPROVED LUBRICANT .
Weather strip (1) must be flush at front to door.

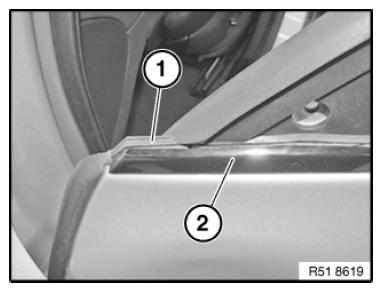

Window guide (1) must be flush under weather strip (2)
