54 37... Installing guide plate for cowl panel baseplate (build date up to 07/2007)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove cowl panel trim . See 51 44 150 REPLACING TRIM FOR FRONT ROOFLINER .

Release screw (1).

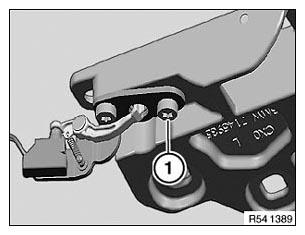

Fig 1: Identifying Screw (1)

G06181104

Courtesy of BMW OF NORTH AMERICA, INC.

Pull back microswitch lever (3).

Mount guide plate (2) loose with screw (1).

Fig 2: Mount Guide Plate (2) Loose With Screw (1)

G06181105

Courtesy of BMW OF NORTH AMERICA, INC.

Align guide plate (2) with 6.5 mm dia. dowel pin (or drill bit shank).

Tighten screw (1).

Tightening torque: see 26AZ in 54 37 POWER CONVERTIBLE TOP .

Fig 3: Locating Guide Plate With Dowel Pin And Screw

G06181106

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out visual inspection from above.

Guide plate aligned uniformly to bore.

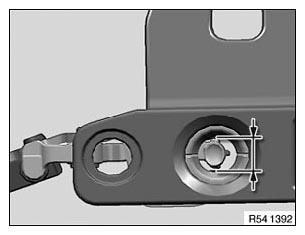

Fig 4: Identifying Guide Plate Dimension

G06181107

Courtesy of BMW OF NORTH AMERICA, INC.
