51 44 150 Replacing trim for front roofliner

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Open convertible top or retractable hardtop.
Remove front roofliner/roof switch center trim insert . See 61 31 043 REMOVING AND INSTALLING OR REPLACING ROOF SWITCH CENTRE .
Remove both front mirror lights
Remove both sun visors .
Remove both trims for front roof pillar

E93 only:

Unclip trim (1) on left/right towards top.

Installation:

Replace trim (1).

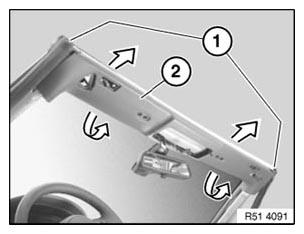

Fig 1: Replacing Trim For Front Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

Detach mucket (1) in area of trim (2).

Pull back trim (2) in direction of arrow and remove.

Installation:

Make sure mucket (1) is correctly seated.

Fig 2: Detaching Mucket In Area Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.
