54 37... Gauging coupling fastener (without removing and installing roof module): Notes

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: To prevent damaging the coupling fastener gauge, set the gauge down only in the transportation crate or on the cross beam.
The coupling fastener gauge is a highly sensitive measuring instrument which reacts even to light impacts with distortion.
The coupling fastener gauge must  be checked for dimensional accuracy on a master gauge after being subjected to impact or dropped.
NOTE: Gauging of coupling fastener must be checked.

Necessary preliminary tasks:

NOTE: Close convertible top (roof module extended).

Release left and right screws (1).

Tightening torque: see 13AZ in 54 37 POWER CONVERTIBLE TOP .

Slacken lock nut with special tool 54 0 190.

Tightening torque: see 24AZ in 54 37 POWER CONVERTIBLE TOP .

Turn barrel screws back with special tool 54 0 180.

Installation:

Tighten barrel screws with special tool 54 0 180 in conjunction with 00 9 450.

Tightening torque: see 22AZ in 54 37 POWER CONVERTIBLE TOP .

Fig 1: Identifying Barrel Screws
G06181084Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Open convertible top (roof module lowered).
IMPORTANT: Tape off corners of roof shell 1 and 3. Risk of damage when positioning gauge for coupling fastener and assembly.
Fig 2: Tape Off Corners Of Roof Shell
G06181080Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Remove holder on left and right.

Fig 3: Identifying Holder And Screws
G06181086Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Tightening torque: see 13AZ in 54 37 POWER CONVERTIBLE TOP .

Fig 4: Identifying Screws
G06181087Courtesy of BMW OF NORTH AMERICA, INC.

Slacken lock nuts (1) with special tool 54 0 190.

Tightening torque: see 24AZ in 54 37 POWER CONVERTIBLE TOP .

Turn barrel screws back with special tool 54 0 180.

Installation:

Tighten barrel screws with special tool 54 0 180 in conjunction with 00 9 450.

Tightening torque 0.2 Nm (= 20 cNm):

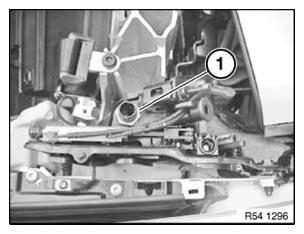

Fig 5: Slacken Lock Nuts
G06181088Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right coupling fasteners.

Fig 6: Identifying Screws On Coupling Fasteners
G06181089Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bushing (1) stretches as screw (2) is tightened against coupling fastener (3).

Tightening torque: see 12AZ in 54 37 POWER CONVERTIBLE TOP .

Fig 7: Bushing Stretches As Screw Is Tightened Against Coupling Fastener
G06181090Courtesy of BMW OF NORTH AMERICA, INC.
