51 47 140 Removing and installing/replacing panel for luggage compartment partition

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment floor trim panel

Version with ski bag:

Remove ski bag

Open lid for lowerable hardtop.

If necessary, extend lowerable hardtop.

Release screw (1).

Release clips (2).

Raise trim (3) slightly and feed out panel (4).

Installation:

If necessary, replace faulty clips (2).

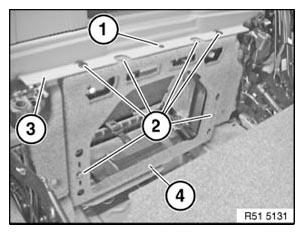

Fig 1: Identifying Feed Out Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
