54 37 065 Removing and installing/replacing cover for hinge for roof shell, middle left and right

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim strip

Move convertible top into service position .

Move convertible top so that angle of hinges is not ≤90°.

IMPORTANT: Risk of damage! Pressure in hydraulic system drops and convertible top loses its position.

Support rear roof shell to convertible top cover with suitable auxiliary material.

Auxiliary material must lie over wide area and if possible over entire length.

Rear roof shell is supported by auxiliary material on convertible top cover.

Fig 1: Identifying Convertible Top Service Position

G06181108

Courtesy of BMW OF NORTH AMERICA, INC.

Roof shells block each other.

Carefully unclip cover (1) with plastic wedge.

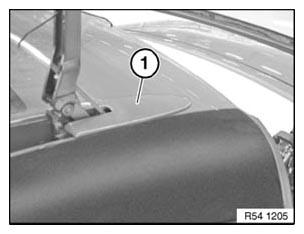

Fig 2: Identifying Cover

G06181188

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers must not be damaged and must be pre-installed.

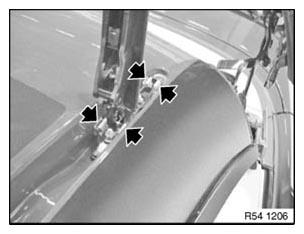

Fig 3: Locating Retainers

G06181189

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert cover (1) with guide (2) in roof hinge bracket.

Pull cover (1) towards rear and clip into place.

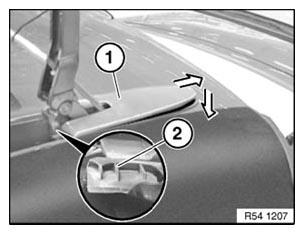

Fig 4: Identifying Cover And Guide
