54 37 060 Removing and installing/replacing trim strip for roof shell, middle left or right
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.
Move convertible top into service position .
Move convertible top so that angle of hinges is not ≤90°.
IMPORTANT:
Risk of damage! Pressure in hydraulic system drops and convertible top loses its position.

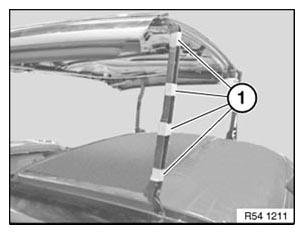

Support rear roof shell to convertible top cover with suitable auxiliary material.
Auxiliary material must lie over wide area and if possible over entire length.
Rear roof shell is supported by auxiliary material on convertible top cover.
Roof shells block each other.

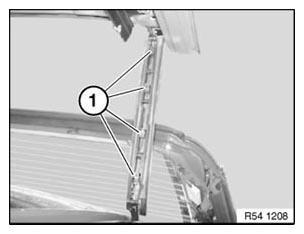

Lever out covers of clips (1).

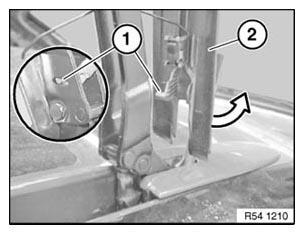

Release and remove clips (1).
Remove trim strip (2) from roof hinge bracket.
Installation:

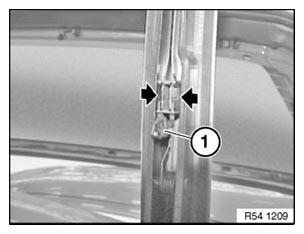

Guide lug (1) must not be damaged.
Make sure guide lug (1) is correctly seated in roof hinge bracket.
NOTE:
Secure spring wire with adhesive tape. Risk of damage!
