54 37 025 Replacing rear roof shell seal: Notes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 4 430
- 51 0 300
Installation:
- Screws with sealing compound must be replaced and must not be reused
- Thread of nut must be cleaned beforehand
New parts required:
- Seal
- Butylene thread dia. 4 mm
Necessary preliminary tasks:
- Remove roof lining .
- Move into assembly position
- Bring vehicle to garage/workshop temperature

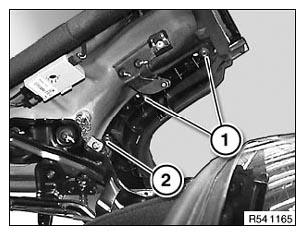

Release screws (1).
Release screw (2) with special tool 00 4 430.
Tightening torque: see 1AZ in 54 37 POWER CONVERTIBLE TOP .
Pull seal off roof shell at rear.
