54 37... Convertible top assembly position

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Move convertible top so that angle of hinges is greater than 90°.

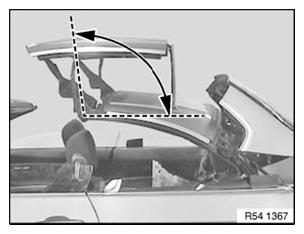

Fig 1: Identifying Convertible Top Angle

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage! Pressure in hydraulic system drops and convertible top loses its position.

Support rear roof shell to convertible top cover with suitable auxiliary material, e.g. hard foam.

Rear roof shell is supported by auxiliary material on convertible top cover.

Auxiliary material must lie over wide area and over entire length.

Select auxiliary material with a smooth surface, as otherwise pressure points in the outer skin and seal may arise.

Roof shells block each other.

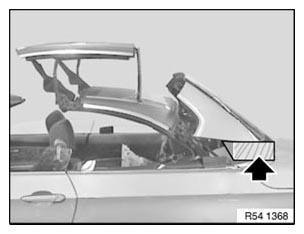

Fig 2: Locating Convertible Top Position

Courtesy of BMW OF NORTH AMERICA, INC.
