Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

Release screws (2) and remove backup aerial/antenna (3).

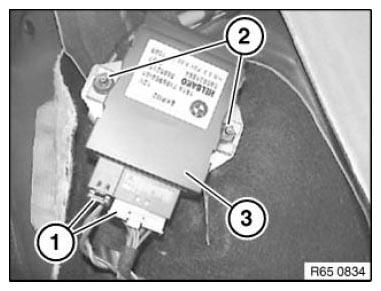

Fig 1: Identifying Plug Connection, Screws And Backup Aerial/Antenna
G06980308Courtesy of BMW OF NORTH AMERICA, INC.
