26 20 000 Removing and installing front propeller shaft
WARNING: This page is about a different car, the 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 328i, 2009 BMW 328i, and 2008 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Do not move vehicle with drive power once propeller shaft has been removed.
IMPORTANT:
Replacement only:
Perform functional check of transfer box (calibration) according to installation with BMW diagnosis and information system under control unit function.
Necessary preliminary tasks:
- Remove underbody protection

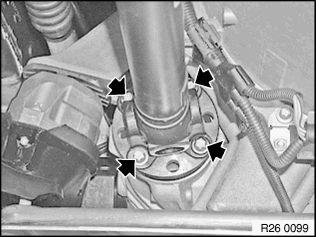

Release screws.
Installation note:
Replace ZNS bolts.
Tightening torque, 26 11 9AZ .
Release screws.
Remove propeller shaft.
Installation note:
Replace ZNS bolts.
Tightening torque, 26 11 9AZ .
