Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove underbody protection at FRONT and REAR
Secure engine in INSTALLATION POSITION
Remove INTAKE FILTER HOUSING
Remove REINFORCEMENT STRUT (E90/91/92 only)

Release grounding strap from engine support arm.

Release clamp from fuel hose of engine support arm.

If necessary, release screw (1).

Release corrugated tube (2) from retainer.

Release screws (3).

Remove engine support arm.

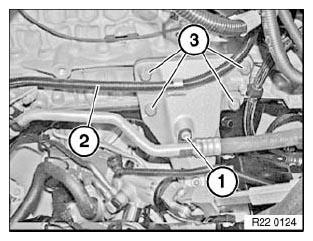

Fig 1: Identifying Corrugated Tube With Mounting Screw And Engine Support Arm Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Aluminium screws/bolts must be replaced.

Tightening torque 22 11 3AZ
