11 14 080 Removing and installing top left timing case cover (N62/N62TU)

(Cylinder Bank 5 To 8)

Necessary Preliminary Tasks:

Remove left cylinder head cover. Refer to 11 12 005 REMOVING AND INSTALLING/SEALING LEFT CYLINDER HEAD COVER (N62/N62TU) .

Remove both solenoid valves on left side. Refer to 11 36 715 REMOVING AND INSTALLING/REPLACING BOTH SOLENOID VALVES ON LEFT SIDE (N62/N62TU) .

Release alternator (air-cooled). Refer to 12 31 020 REMOVING AND INSTALLING/REPLACING ALTERNATOR (N62) .

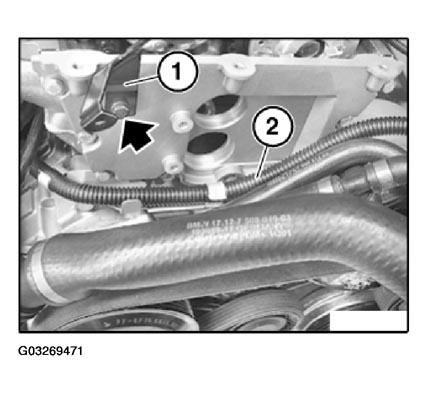

Release screw, remove holder (1).

Remove line (2) from holder.

Fig 1: Removing Line From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

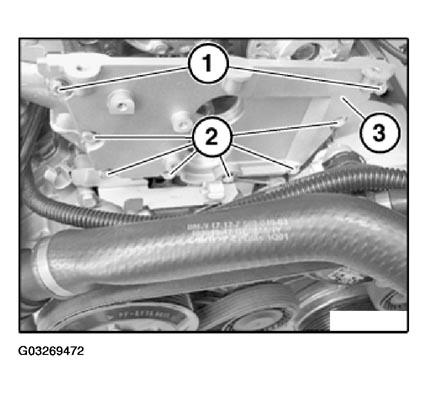

Release screws (1 and 2).

Remove timing case cover (3).

Fig 2: View Of Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

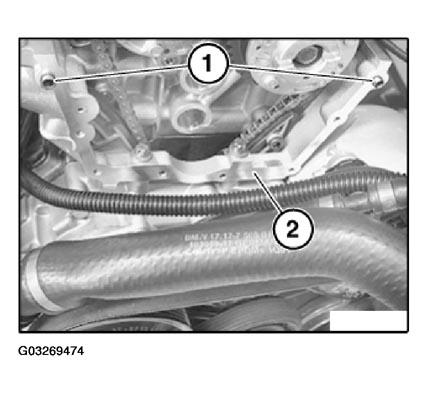

Free sealing face (2) on timing case cover (3) of seal debris and clean.

Fig 3: Identifying Free Sealing Face On Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

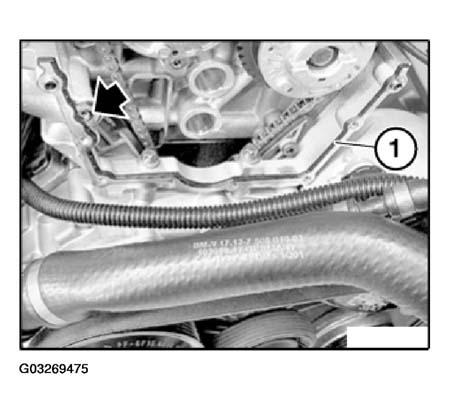

Check adapter sleeves (1) for damage and correct installation position; replace if necessary.

Free sealing face (2) of seal debris and clean.

Fig 4: Locating Adapter Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

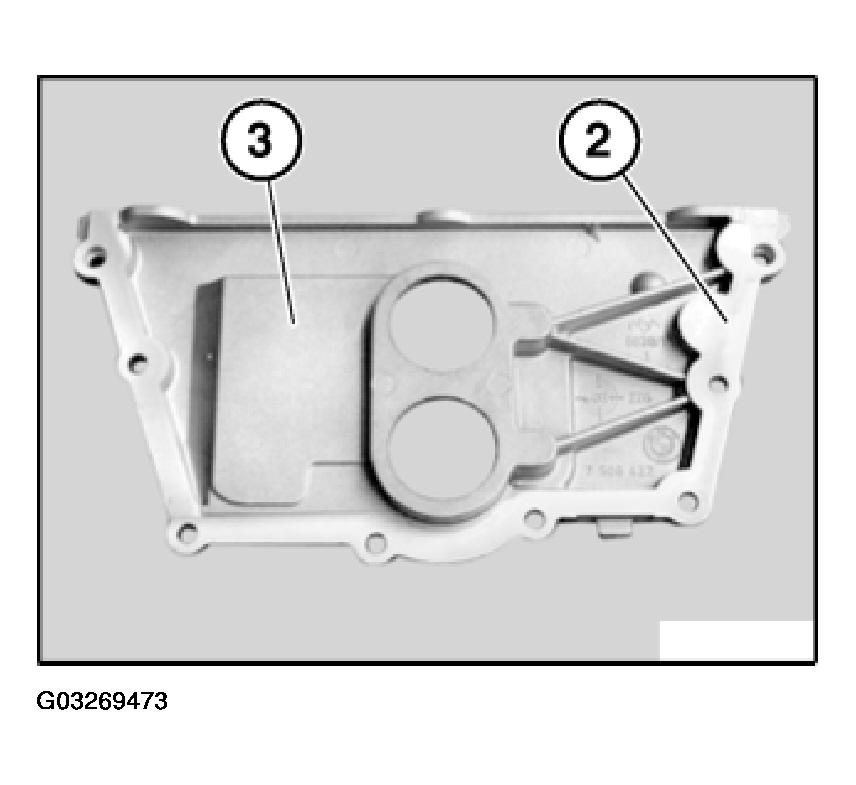

Replace gasket (1) and check for correct installation position.

Fig 5: View Of Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
