11 36 715 Removing and installing/replacing both solenoid valves on left side (N62/N62TU)

WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.

(Cylinder Bank 5 To 8)

Necessary Preliminary Tasks:

Read out fault memory of control unit of Digital Motor Electronics (DME).
Switch off ignition.
Remove design cover.
Unlock hose on tank venting valve and disconnect.

NOTE: Solenoid valve (1) controls adjusting unit on inlet side. Solenoid valve (2) controls adjusting unit on exhaust side.

Unlock plug of solenoid valves (1 and 2) and disconnect.

Release screws and remove holder (3).

Pull out solenoid valves (1 and 2).

Installation:

Check holder (3) for deformation; replace if necessary.

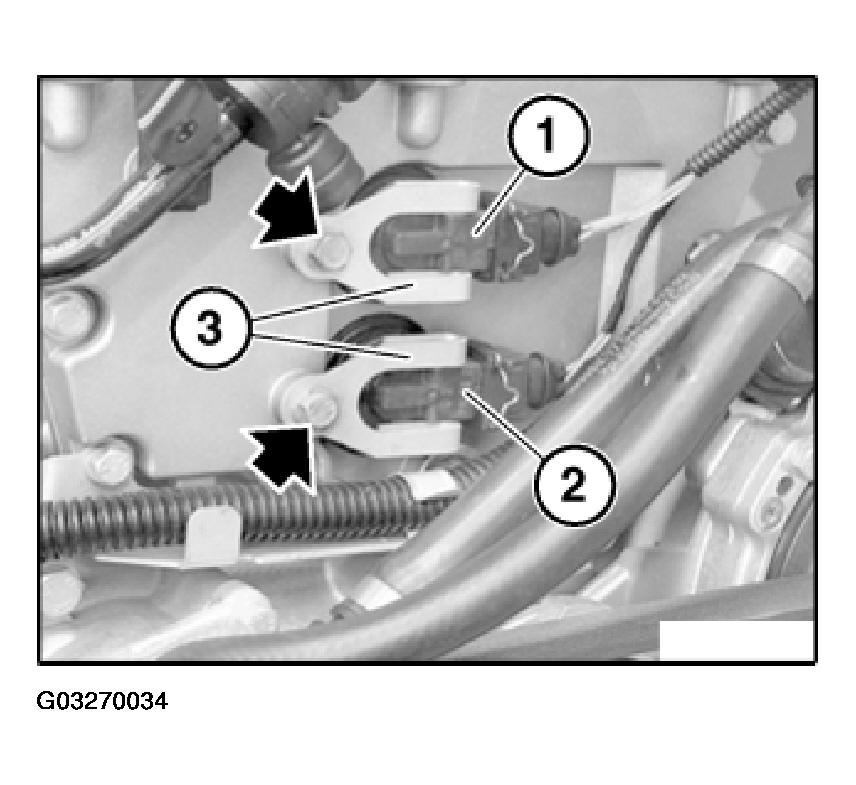

Fig 1: Identifying Solenoid Valves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean sealing faces (1) on cylinder head.

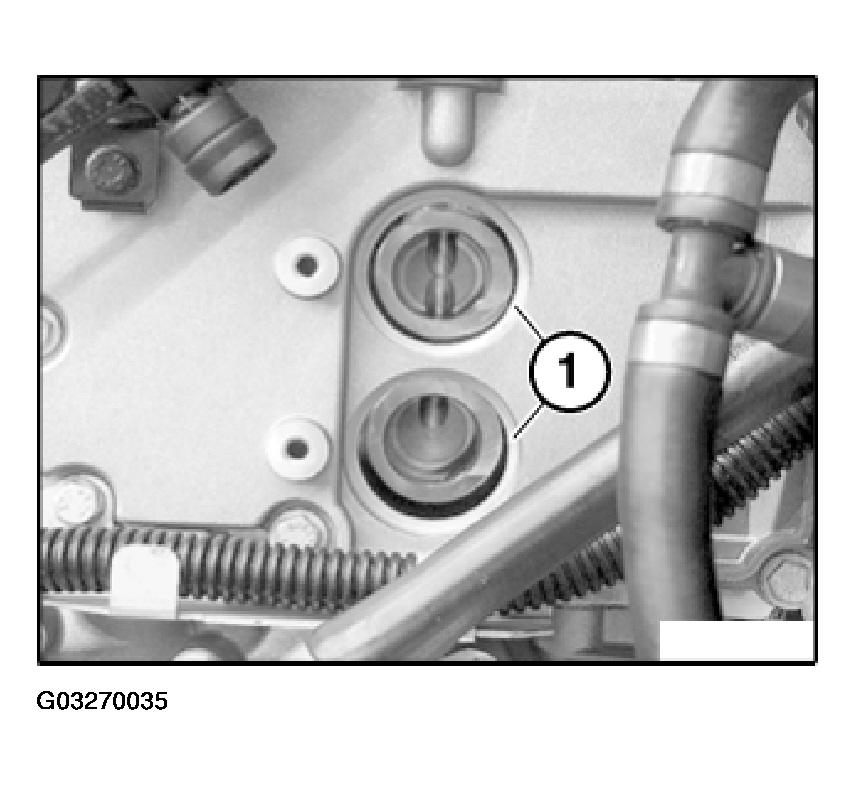

Fig 2: View Of Sealing Faces On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-rings (1 and 2) on solenoid valve (3) and lubricate.

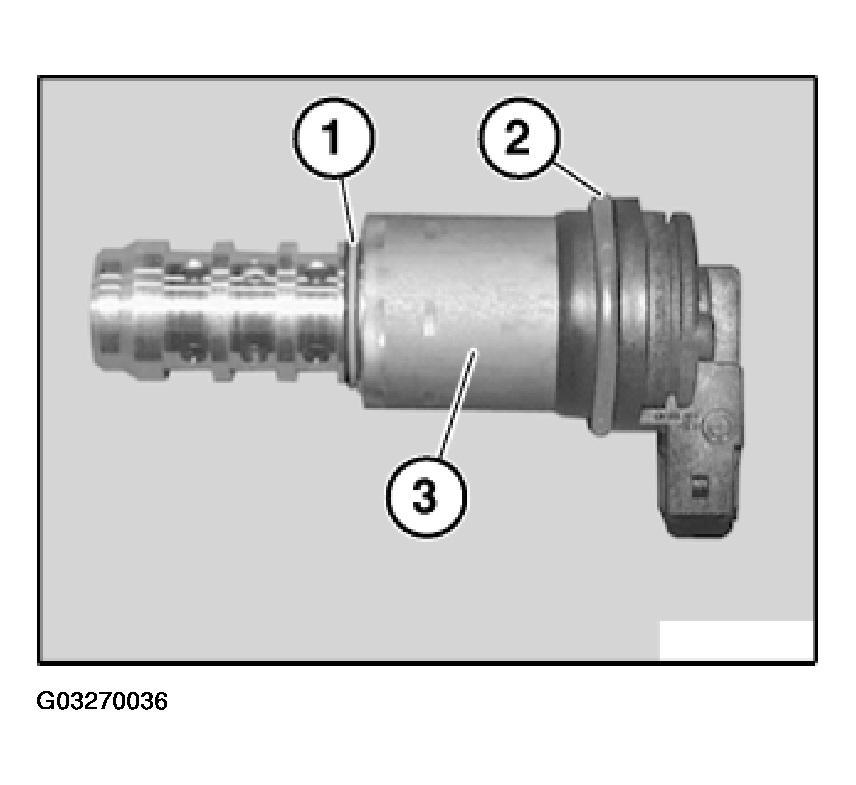

Fig 3: Locating O-Rings On Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Press in solenoid valve as far as it will go.

Make sure holders are in correct installation positions.

Install and tighten down screws.

Now clear the fault memory.

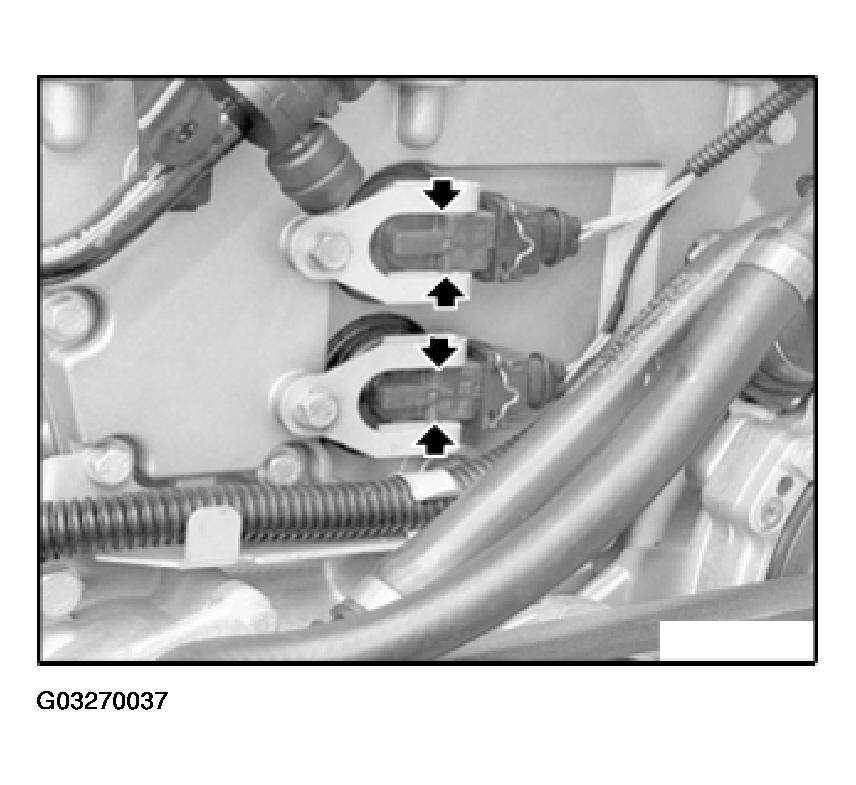

Fig 4: Identifying Correct Installation Position Of Holders

Courtesy of BMW OF NORTH AMERICA, INC.
