Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release TRIM STRIP ON DRIP MOLDING at rear section (do not remove)

Snap out trim strip (1) in area (A) in downward direction.

Snap trim strip (1) in direction of arrow out of clips (2) and remove.

Fig 1: Removing Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check all clips for visible damage.

Following components must not be damaged, replace if necessary:

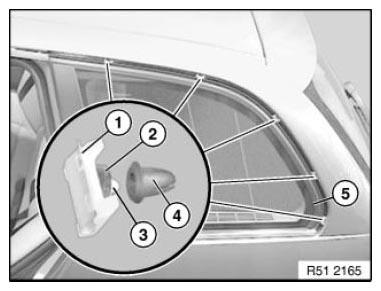

Fig 2: Identifying Retainer, Seal, Plastic Carrier, Grommet And Trim Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Moisten seal (1) of side window with water.

First feed in trim strip (2) behind seal (1), then snap into clips.

Seal (1) must not be trapped by trim strip (2) (risk of damage).

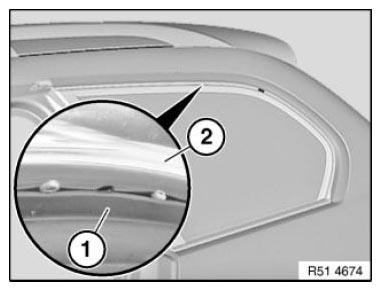

Fig 3: Identifying Trim Strip And Seal

Courtesy of BMW OF NORTH AMERICA, INC.
