51 13 316 Removing and installing/replacing trim strip on roof gutter at left or right
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Make sure that body is not damaged.

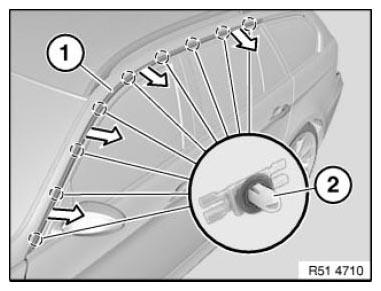

Open doors and, starting at front, release trim strip (1) with special tool 00 9 317 from clips (2).
Installation:
To avoid leaks and noises, check all clips (2) for visible damage.
If necessary, replace faulty clips (2).
Align clips (2) on body and fit trim strip (1).
Installation:
Seals (1) must not be damaged.
IMPORTANT:
- Carry trim strip by its middle section only (risk of damage)
- Perform installation work with a second person helping
- Prepositioning of trim strip
- Ensure drip molding runs parallel to side frame (risk of breakage)
