Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove TRIM FOR REAR WINDOW FRAME on left/right
Remove INSERT ON REAR LID TRIM PANEL
Remove LUGGAGE COMPARTMENT LIGHT ON REAR LID

Unclip trim (1) towards top.

Fig 1: Unclipping Trim Towards Top

G05506890

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push clips (1) onto trim.

Fig 2: Identifying Clips

G05506891

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 3: Identifying Screws

G05506892

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Detaching recessed handle is shown on left side; proceed in same way for detaching recessed handle on right side.

Lever out cover (1) and release screw on recessed handle (2) underneath.

Fig 4: Removing Cover

G04768137

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1) on trims (2).

Feed out eyelet (3) and remove trim (2) towards bottom.

Installation:

If necessary, replace faulty clips (1).

Eyelet (3) for manual unlocking of rear lid must be accessible.

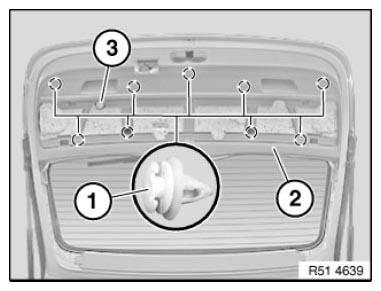

Fig 5: Removing Clips And Trim

G06979079

Courtesy of BMW OF NORTH AMERICA, INC.
