51 49 012 Replacing insert on rear lid trim panel at bottom

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2012 BMW 328xi, 2012 BMW 328i, 2011 BMW 328xi, 2011 BMW 328i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release catches (1) and fold insert (2) downwards.

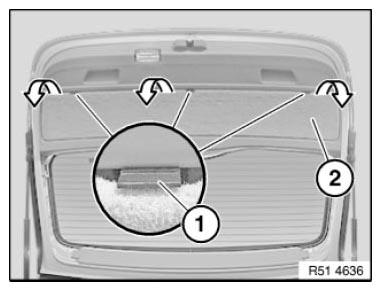

Fig 1: Removing Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully compress holders (1) and remove insert (2).

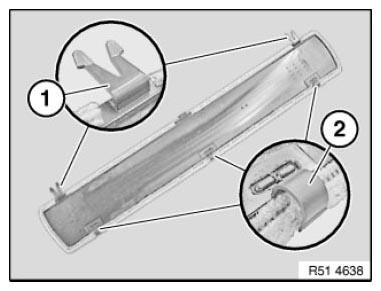

Fig 2: Identifying Holders And Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Holders (1) and catches (2) must not be damaged.

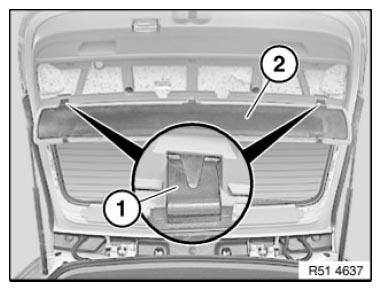

Fig 3: Identifying Holders And Catches

Courtesy of BMW OF NORTH AMERICA, INC.
