Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, 2009 BMW 328xi, and 2008 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove FRONT ASSEMBLY UNDERSIDE PROTECTION
Remove STABILIZER LINK ON BOTH SIDES FROM STABILIZER

NOTE: The following illustrations was created using the E91 with M57T2 as an example. Other vehicles and engines may show differences in detail.

N52:

Remove coolant pipe from front axle carrier.

Release screws (1).

Remove bracket (2) with pressure line for power steering from front axle carrier.

Remove stabilizer (3).

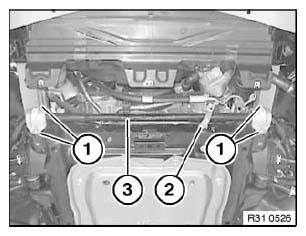

Fig 1: Identifying Stabilizer, Bracket With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check RUBBER MOUNT ON BOTH SIDES , replace if necessary.

Set car on its wheels and tighten down nuts to tightening torque 31 35 1AZ .
