31 35 005 Removing and installing/replacing push rod (stabilizer link) for left or right stabilizer (AWD)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 328xi, 2009 BMW 328xi, and 2008 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release nuts (1); if necessary, grip with open-end wrench.

Remove stabilizer link (2).

Installation:

Replace self-locking nuts.

Tightening torque 31 35 2AZ .

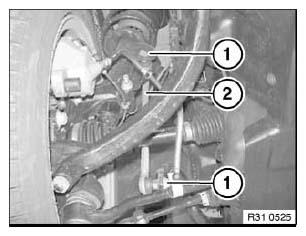

Fig 1: Identifying Stabilizer Link With Self-Locking Nuts
G04745217Courtesy of BMW OF NORTH AMERICA, INC.
