28 40 000 Removing and installing or replacing clutch cover (GS7D36SG)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

IMPORTANT: It is essential to adhere to conditions of absolute cleanliness.
Any dirty parts must be cleaned before removing the clutch cover.
After completion of work, check GEARBOX OIL LEVEL .
Use only the approved gear oil for dual clutch transmission.
Failure to comply with this instruction will result in serious damage to the twin-clutch gearbox.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Installation note:

Removal and installation of clutch cover:
Replace RADIAL SHAFT SEAL , O-ring and snap ring.
Replacement clutch cover:

Replace as a single assembly only (including radial shaft seal, O-ring, bearing, retaining plate and snap ring).

Necessary preliminary work

Remove TWIN-CLUTCH GEARBOX

To prevent the gearbox oil from spilling out, tilt the gearbox back before removing the clutch cover.

Installation note:

After completing work, add gearbox oil and check GEARBOX OIL LEVEL .

Lever snap ring (1) out of housing with a suitable tool.

Installation note:

Replace snap ring.

Fig 1: Identifying Snap Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic shows: Twin-clutch gearbox S65

Slip bush 23 0 390 BUSHmust be used when clutch cover is removed and installed.

Pull clutch cover with special tool 13 5 250 PULLER and adapter 54 0 163 out of housing.

IMPORTANT: Ensure uniform (non-tilting) detachment by alternately using the 3 tightening threads.

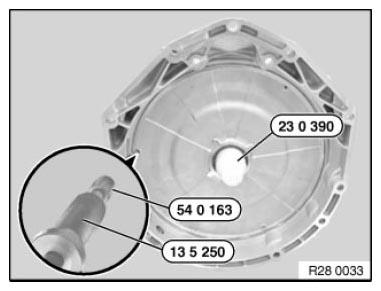

Fig 2: Pulling Clutch Cover Using Special Tool (13 5 250)And Adapter (54 0 163) Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic shows: Twin-clutch gearbox S65

Remove oil fouling with fluff-free cloth.

Clean snap ring groove before installing clutch plate.

Press clutch cover (1) into housing with arrow pointing up and strike evenly with a plastic mallet.

Then secure clutch cover with snap ring.

Make sure snap ring is correctly seated.

Installation note:

Moisten O-ring and radial shaft seal with gearbox oil.

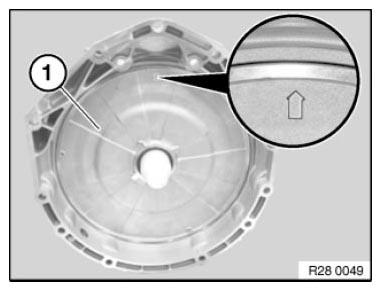

Fig 3: Identifying Clutch Cover

Courtesy of BMW OF NORTH AMERICA, INC.
