51 71 348 Removing and installing/replacing suspension crossbrace mounting
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Driving without the suspension crossbrace is not permitted. (Risk of damage to the body).
Screws of suspension cross-brace and cross-brace mounting must be tightened to torque and then tightened down with special tool 00 9 120 TORSION ANGLE GAUGE .
Screws of suspension cross-brace and cross-brace mounting must be tightened to torque and then tightened down with special tool 00 9 120 TORSION ANGLE GAUGE .
Necessary preliminary tasks
Remove COWL PANEL COVER
NOTE:
Air manifold is shown removed for purposes of clarity.
Release mucket in covered area.

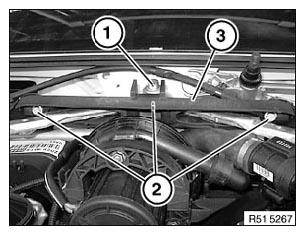

Release screws (1 and 2).
Remove suspension cross-brace mounting with middle heater bulkhead (3).
Installation:
Replace screw (1).
Tighten down screw (1) to torque and then to angle of rotation using special tool 00 9 120 TORSION ANGLE GAUGE .
Tightening torque 51 71 17AZ .
Replacement

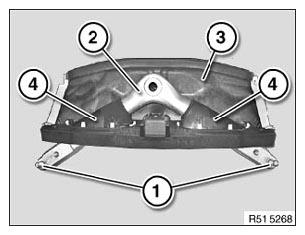

- Release studs (1) and feed suspension cross-brace mounting (2) out of middle heater bulkhead (3)
If necessary, release suspension cross-brace grommets (4)
Installation:
Replace studs (1).
