51 71 348 Removing and installing/replacing suspension crossbrace mounting

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Driving without the suspension cross-brace is not permitted. (Risk of damage to the body).
Screws of suspension cross-brace and crossbrace mounting must be tightened to torque and then tightened down with special tool 00 9 120 .

Necessary preliminary tasks

Remove both suspension cross-brace
Remove COWL PANEL COVER

NOTE: Air manifold is shown removed for purposes of clarity.

Release mucket in covered area.

Release screws (1 and 2).

Remove suspension cross-brace mounting with middle heater bulkhead (3).

Installation:

Replace screw (1).

Tighten down screw (1) to torque and then to angle of rotation using special tool 00 9 120.

Tightening torque 51 71 17AZ .

Fig 1: Identifying Middle Heater Bulkhead With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release studs (1) and feed suspension cross-brace mounting (2) out of middle heater bulkhead (3)

If necessary, release suspension crossbrace grommets (4)

Installation:

Replace studs (1).

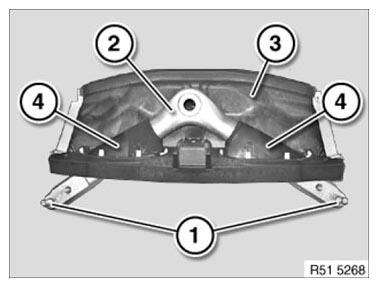

Fig 2: Identifying Suspension Cross Brace Mounting And Grommets With Heater Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.
