64 53 520 Replacing safety pressure switch
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury!
Refrigerant circuit is under high pressure!
Follow safety instructions for HANDLING R 134A REFRIGERANT .
Avoid contact with refrigerant and refrigerant oil.
Follow safety instructions for HANDLING REFRIGERANT OIL .
Refrigerant circuit is under high pressure!
Follow safety instructions for HANDLING R 134A REFRIGERANT .
Avoid contact with refrigerant and refrigerant oil.
Follow safety instructions for HANDLING REFRIGERANT OIL .
IMPORTANT:
Risk of damage!
Restart engine only when A/C system has been correctly filled.
Follow INSTRUCTIONS for opening and replacing parts in refrigerant circuit!
Restart engine only when A/C system has been correctly filled.
Follow INSTRUCTIONS for opening and replacing parts in refrigerant circuit!
NOTE:
If A/C system is opened for more than 24 hours:REPLACE DESICCANT INSERT FOR A/C SYSTEM
Necessary preliminary tasks
- DRAWING OFF, EVACUATING AND FILLING THE A/C SYSTEM are not included in the time value given for this work operation!

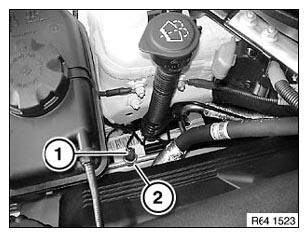

Disconnect plug connection (1) and release safety pressure switch (2).
Tightening torque 64 53 14AZ .
After installation
