72 11 033 Removing and installing/replacing front left or right seat belt

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work

Remove panel for door post See 5143150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM) ; 5143148 REMOVING AND INSTALLING OR REPLACING TRIM ON LEFT OR RIGHT DOOR PILLAR (TOP) or 5143148 REMOVING AND INSTALLING OR REPLACING TRIM ON LEFT OR RIGHT DOOR PILLAR (TOP) .

Move backrest to full rearward position.

Unclip release tab (2) for belt anchor fitting trim (1) with plastic wedge.

Fig 1: Removing Release Tab For Belt Anchor Fitting Trim Using Plastic Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 72 11 2AZ .

Remove anchor fitting (2).

Installation note:

Make sure anchor fitting is correctly seated on seat mechanism pin.

Fig 2: Identifying Anchor Fitting And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 72 11 4AZ .

Remove deflector bar (2).

Release screw (3).

Tightening torque: 72 11 3AZ .

Set down belt deflector with belt (4).

Fig 3: Identifying Belt With Deflector Bar And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 72 11 1AZ .

Remove automatic reel (3).

Installation note:

Coding (2) of automatic reel must be seated in body opening.

Fig 4: Removing Automatic Reel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

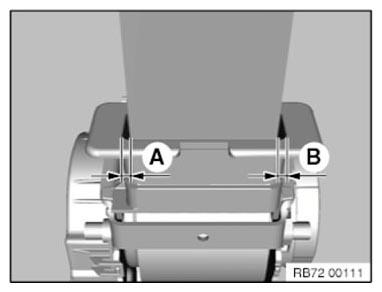

Free spaces of (A) and (B) from the seat belt strap to the guide funnel must be of the same size.

Fig 5: Identifying Free Spaces Dimension Of Seat Belt Strap

Courtesy of BMW OF NORTH AMERICA, INC.
