51 16 206 Removing and installing/replacing center armrest

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Move both front seats forwards

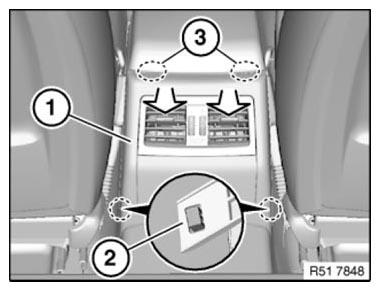

IMPORTANT: Grip behind trim (1) from below and release catch (2) (risk of damage).

Pull trim (2) towards rear and release from catches (3).

Fig 1: Pulling Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1 and 3) must not be damaged.

Guides (2) must not be damaged.

If necessary, release REAR COMPARTMENT FRESH-AIR GRILLE in order to install trim correctly.

Fig 2: Identifying Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Open center armrest otherwise spring (1) will be under too much tension.

Disengage spring (1) with screwdriver (2).

Installation:

Make sure spring (1) is correctly seated.

Fig 3: Disengaging Spring Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Drive out hinge shafts (1).

NOTE: Hinge shafts (1) are secured on the outside with toothing (3).

Remove spring (2), open center armrest and feed out of storage compartment.

Fig 4: Removing Hinge Shaft And Spring

Courtesy of BMW OF NORTH AMERICA, INC.
