64 22 191 Removing and installing/replacing rear compartment fresh-air grille
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

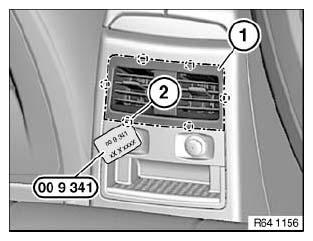

Lever out rear compartment fresh air grille (1) with special tool 00 9 341 at retaining points (2).
Disconnect associated plug connection and remove rear compartment fresh-air grille (1).
