51 45 185 Removing and installing/replacing panel for pedals

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Pull back trim for pedal assembly (2).

Disconnect associated plug connections and remove trim for pedal assembly (2).

IMPORTANT: Disconnecting the plug connection for the hands-free system speaker results in fault memory entries in the telephone control unit (limitation in the emergency SOS call system).
After fitting, read out fault memory and if necessary delete entries.

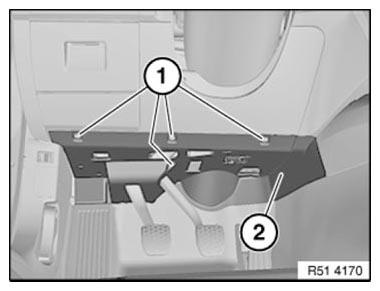

Fig 1: Identifying Screws And Pedal Assembly

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement (depending on Security version)

Modify SPEAKER (Park Distance Control)
Modify FOOTWELL LIGHT
Modify MOST direct access bracket
Modify BLUETOOTH AERIAL
Cut out opening for clutch pedal

Fig 2: Identifying Clutch Pedal Opening Cut Out Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement on right-hand drive up to model year 2005

NOTE: It is necessary to rework the side trim panel because of modified locators on the side trim panel and the panel for the pedal assembly from model year 2005.

Remove SIDE TRIM PANEL (DRIVER'S SIDE) .

Cut off the first three upper ribs (1) on side trim panel (2) flat with a scalpel to contact face (3).

Fig 3: Identifying First Three Upper Ribs On Side Trim Panel
