51 71... Removing and installing/replacing multifunction pan

Necessary preliminary tasks

• Remove luggage compartment trim panels  . See 5147161 REMOVING AND INSTALLING/REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM  or 5147151 REMOVING AND INSTALLING/REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM .
• Remove exhaust system  .

Unclip vacuum line (1) from heat shield.

Unfasten screws (2).

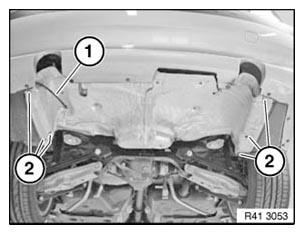

Fig 1: Identifying Heat Shield Vacuum Line With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove both heat shields.

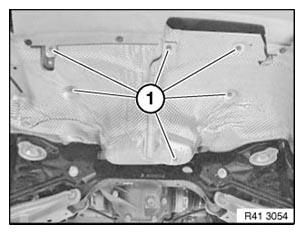

Fig 2: Identifying Heat Shield Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip line (1).

Unfasten screws (2).

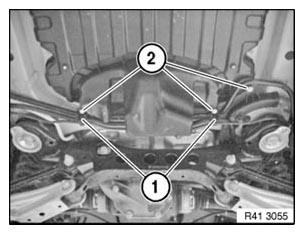

Fig 3: Identifying Vacuum Line With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove multifunction pan.

Tightening torque 51 71 9AZ .

Fig 4: Identifying Multifunction Pan Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on multifunction pan (2) must be replaced each time they are removed.

Fig 5: Identifying Seals On Multifunction Pan

Courtesy of BMW OF NORTH AMERICA, INC.
