51 41 001 Replacing front left or right door trim panel

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT DOOR TRIM PANEL
Remove
Remove SPEAKER TRIM
Remove INSIDE DOOR OPENER
Remove ROCKER SWITCH FOR SIDE WINDOW OPERATION

Version with light package:

Remove FOOTWELL LIGHT .

Cut out cutout (1) for entrance light on new door trim panel with scalpel.

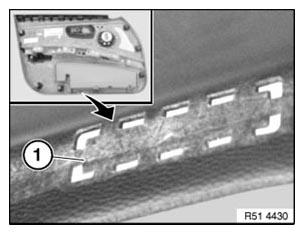

Fig 1: Identifying Cutout And Entrance Light On Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

US/CND national-market version:

If necessary, replace crashpad (1).

Pull off protective film from rear side of crashpad (1).

Stick crashpad (1) on door trim panel.

Installation:

Positioning by way of uniform distance to mounting (2) and outer edge (3).

Press on crashpad (1) firmly for approx. 20 seconds.

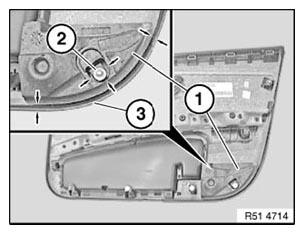

Fig 2: Identifying Crashpad On Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
