51 41 000 Removing and installing left or right front door trim panel

Necessary preliminary tasks

Driver's side only:

• Remove DECORATIVE STRIP FROM DOOR TRIM PANEL

Passenger side only:

• Remove COVER ON DOOR HANDLE

Driver's side only:

Release screws (1).

Tightening torque 51 41 1AZ .

Fig 1: Identifying Front Door Trim Panel Screws (Driver Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger side only:

Release screws (1).

Tightening torque 51 41 1AZ .

Fig 2: Identifying Front Door Trim Panel Screws (Passenger Side)

Courtesy of BMW OF NORTH AMERICA, INC.

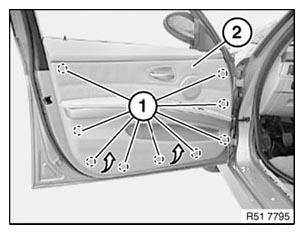

Unclip clips (1) for door trim panel (2) with special tool 009317 .

Fig 3: Removing Door Trim Panel Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unclip door trim panel (1) at top from retainers (2).

Fig 4: Removing Door Trim Panel Clip From Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable (1) from door lock (2).

Disconnect all plug connections and remove door trim panel.

Fig 5: Identifying Bowden Cable And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips.

Fit all clips with sealing ring.

Make sure clips are installed in correct position.

1. Grey clip
2. White clip

US/CND version:

Crashpad (3) must be correctly fitted.

(SEE REPLACING DOOR TRIM PANEL)

Fig 6: Identifying Grey Clip, White Clip And Crashpad

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

• Open door window.
• Lock with vehicle key.
• Check for ease-of-movement on retaining button linkage
• If necessary, align linkages
