51 31 242 Replacing rubber frame (bottom) for rear window
WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Open rear lid.
NOTE:
For purposes of clarity, illustrations do not show the rear lid.
IMPORTANT:

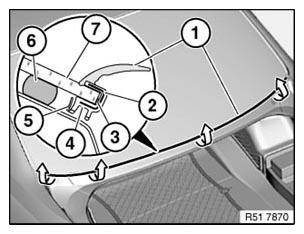

Rubber frame (1) features a stainless steel section inlay (2).
Carefully pull off rubber frame (1) (rear window breakage).
Carefully pull off rubber frame (1) (rear window breakage).
NOTE:
Tear-off lip (5) may be stuck to adhesive (6).
When rubber frame (1) is removed, tear-off lip (5) can tear off and remain in vehicle.
No tear-off lip (5) is fitted as of build date 03/2006.
When rubber frame (1) is removed, tear-off lip (5) can tear off and remain in vehicle.
No tear-off lip (5) is fitted as of build date 03/2006.
3 Pinched butyl
4 Bridge
7 Rear window
NOTE:
Clean rear window in assembly area thoroughly with spirit.
There must be no remnants of butyl on the rear window.
When replacing without removing rear window:
To be able to remove butyl remnants better, insert special tool 009340 under tension between body flange and rear window.
To do so, wrap a cleaning cloth soaked in spirit around special tool 009340 several time and remove butyl remnants between body flange and rear window.
There must be no remnants of butyl on the rear window.
When replacing without removing rear window:
To be able to remove butyl remnants better, insert special tool 009340 under tension between body flange and rear window.
To do so, wrap a cleaning cloth soaked in spirit around special tool 009340 several time and remove butyl remnants between body flange and rear window.

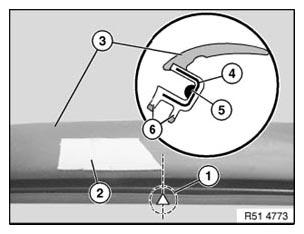

Replacement of rubber frame with removed or new rear window:
Pay attention to center marking (1) on rubber frame (3) and rear window.
Place rubber frame (3) over center marking on rear window and align laterally.
Starting from center, press down rubber frame (3) with firm thumb pressure onto rear window over full length.
2 Marking with adhesive tape (if necessary)
4 Stainless steel section inlay
5 Butyl
Replacement of rubber frame without rear window removal:
NOTE:
Rubber frame is secured at side with window glass adhesive.
Read and comply with NOTES AND INSTRUCTIONS on handling window glass adhesive.

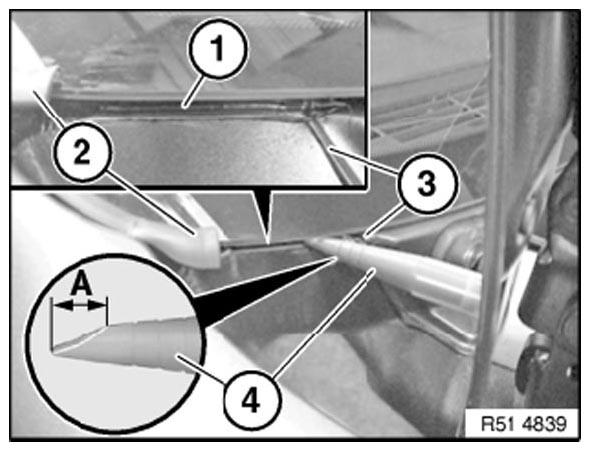

Cut nozzle (4) at an angle in accordance with measurement (A).
A= 10 mm
Apply adhesive bead (1) on left and right of rubber frame (2) up to fold (3) between rear window and body.
Read and comply with NOTES AND INSTRUCTIONS on handling window glass adhesive.
Cut nozzle (4) at an angle in accordance with measurement (A).
A= 10 mm
Apply adhesive bead (1) on left and right of rubber frame (2) up to fold (3) between rear window and body.
NOTE:
Adhesive bead (1) must not protrude over rear window.
If adhesive has managed to get onto bridge (6), this area must be cut out partially.
Mark center marking of rear window with adhesive tape on rear window.
Mark center marking (1) of rubber frame (3) with adhesive tape (2).
Place rubber frame (3) over center markings on rear window and align laterally.
Starting from center, press down rubber frame (3) with firm thumb pressure onto rear window over full length.
If adhesive has managed to get onto bridge (6), this area must be cut out partially.
Mark center marking of rear window with adhesive tape on rear window.
Mark center marking (1) of rubber frame (3) with adhesive tape (2).
Place rubber frame (3) over center markings on rear window and align laterally.
Starting from center, press down rubber frame (3) with firm thumb pressure onto rear window over full length.
