61 35 015 Removing and installing (replacing) control unit for Car Access System

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

NOTE: The comfort access system is a radio-based system and can be interfered with by radio waves from other systems (e.g. mobile phone).

Necessary preliminary tasks

Remove TRIM FOR PEDAL ASSEMBLY

Disconnect plug connection (2).

IMPORTANT: Carefully disconnect plug connection for ribbon cable (1).
Replace the ribbon cable if damaged.
The ribbon cable leads to:

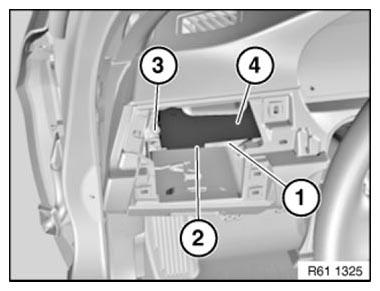

Fig 1: Identifying Car Access System With Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (3).

Feed out control unit for Car Access System (4) to left and remove in downward direction.

Installation:

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.

Fig 2: Identifying Control Unit For Car Access System With Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming and encoding
Version with independent heating: Initialize Telestart hand transmitter See INITIALIZING TELESTART HANDHELD TRANSMITTER (T93) (FROM BUILD DATE 03/2007) or INITIALIZING TELESTART HAND TRANSMITTER (T90) (UP TO BUILD DATE 03/2007) .
