11 36 715 Removing and installing/replacing solenoid valves on left VANOS adjustment unit (S65)

WARNING: This page is about a different car, the 2011 BMW M3, 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove INTAKE AIR MANIFOLD .

Disconnect plug connections (2).

Release screw (1).

Remove solenoid valve (3), exhaust adjustment.

Installation:

Replace O-rings.

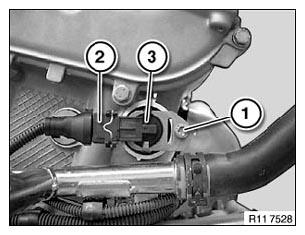

Fig 1: Identifying Solenoid Valve, Plug Connections And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Unfasten plug connection.

Remove solenoid valve (2), inlet adjustment.

Installation:

Replace O-ring.

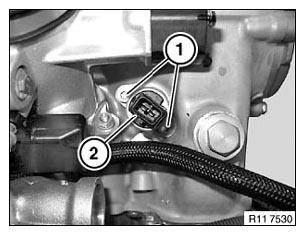

Fig 2: Identifying Solenoid Valve And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Perform VANOS test.
