Necessary preliminary tasks

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove BACKREST
If necessary, remove CENTRE ARMREST
Remove all GUIDE SLEEVES

Specification with center armrest:

Unclip cover (1) towards front.

Installation:

If necessary, replace faulty clips (2).

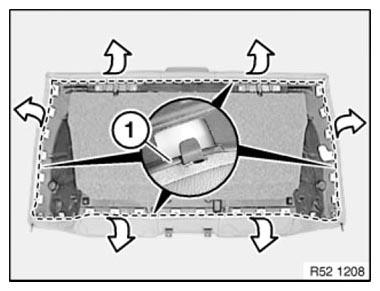

Fig 1: Removing Centre Armrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach backrest cover (1) in marked area from backrest frame.

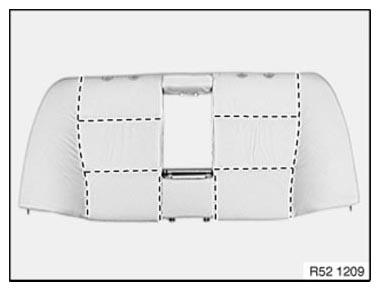

Fig 2: Removing Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach welt (1) from backrest cover in marked area from backrest frame.

Release all retainers in area of left and right guides.

Installation:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

Remove backrest cover with padding from backrest frame.

Fig 3: Detaching Welt From Backrest Cover In Marked Area

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover from upholstery:

Release all retainers in marked area.
Remove cover from padding
Remove remaining retainers from cover and padding.

Fig 4: Identifying Retainers Location
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert new clamp (2) with special tool 52 0 050 and bend closed.

Padding
Retainer
Trim wire in padding
Trim wire in backrest cover
Backrest cover

Fig 5: Inserting Clamp Using Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.

Replacing cover:

Remove all trim wires from cover
If necessary, cut pockets in new cover for trim wires
Push trim wires into pockets

Fig 6: Trim Location On Cover
Courtesy of BMW OF NORTH AMERICA, INC.
