5224030 Removing and installing complete center armrest for rear seat backrest

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2010 BMW 335xi, 2010 BMW 335i, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Open center armrest (1).

NOTE: Protect backrest cover to prevent it from getting dirty.

Release screw.

Remove center armrest (1).

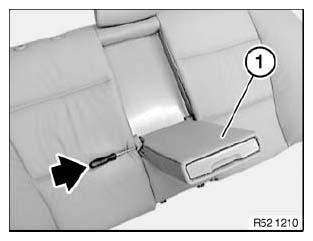

Fig 1: Removing Centre Armrest

Courtesy of BMW OF NORTH AMERICA, INC.
