6450... Install the retrofit absorber for the air conditioning suction line
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.
The retrofit kit may be used for vehicles with a production date from 09/2008.
IMPORTANT:
The retrofit kit with part number 6 987 991 may no longer be used!
Necessary preliminary work:
Remove REAR UNDERBODY PROTECTION
Unscrew nuts (1).
Remove the protective plate (2).
NOTE:
Figure All-wheel drive vehicle

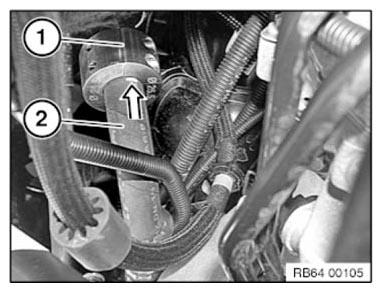

Lay the steel measuring tape (2) onto the intake pipe (1).
IMPORTANT:
The steel measuring tape (2) must be flush with the bottom of the rubber ring (3)!
Mark distance A =11 cm.
Attach the lower edge of the vibration absorber (1) at the marked position and screw it to the intake pipe (2).
Tightening torque: 8 Nm
