3441120 Removing and installing or replacing both handbrake Bowden cables

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove AIRBAG CONTROL UNIT

NOTE: After completing work:

Adjust PARKING BRAKE

Lock adjuster unit (ASZE).

Actuate parking brake lever. Connect special tool 32 1 030 . Press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Fig 1: Identifying Special Tool (32 1 030)

G04726684

Courtesy of BMW OF NORTH AMERICA, INC.

Press retainer (1) in balance arm (2) forward in direction of arrow.

Detach handbrake Bowden cables (3) from balance arm (2).

Fig 2: Pressing Retainer In Balance Arm

G04726682

Courtesy of BMW OF NORTH AMERICA, INC.

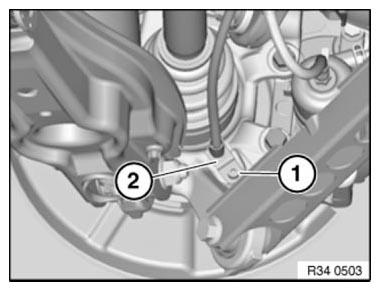

Release screw (1) and remove holder (2).

Installation:

Tightening torque 34 41 2AZ .

Fig 3: Identifying Holder And Screw

G06899391

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To release the parking brake Bowden cable from the expander lock, it is necessary to remove the BRAKE DISC on the following vehicles:

E90 320xd, 325xi, 328xi, 330i, 330xi, 330d, 330xd, 335i, 335xi, 335d, M3
All E91
E92 320xd, 325xi, 325d, 328xi, 330i, 330xi, 330d, 330xd, 335i, 335xi, 335d, M3
E93 320i, 323i, 325i, 325d, 328i, 330i, 330d, 335i, M3
All E84

Release one wheel stud.

Bring wheel into position (tapped hole turned down approx. 20° from horizontal).

F = direction of travel

Installation:

Reinstall wheel stud only after handbrake has been adjusted.

Tightening torque 36 10 1AZ .

Fig 4: Identifying Wheel Stud Angle

G04754267

Courtesy of BMW OF NORTH AMERICA, INC.

Nipple (1) and expander lock (2) are visible through tapped hole.

Push in core of handbrake cable in direction of expander lock as far as it will go and grip firmly.

Press nipple (1) downwards through tapped hole with a screwdriver.

Pull handbrake cables out of wheel carrier.

Fig 5: Identifying Nipple And Expander Lock

G04754268

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert handbrake cable into brake carrier/brake guard plate. Sleeve must be inserted up to stop.

Nipple of handbrake cable must audibly snap into place in expander lock.

Disconnect handbrake cables from holders (1).

Pull handbrake cables towards rear out of guide tube.

Fig 6: Disconnecting Handbrake Cables From Holders

G04726689

Courtesy of BMW OF NORTH AMERICA, INC.
