3410014 Adjusting handbrake

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 335xi, and 2010 BMW 335i. However, it is still accessible from the selected car via links, so may be relevant.

Perform inspection in the following manner

When 1st ratchet is engaged, no braking force should be exerted.

The difference in wheel circumferential forces between the left and right wheels may deviate by max. 30 % from the greater value (measured on brake analyzer).

In event of larger deviations of wheel circumferential force: carry out readjustment.

Braking with locked wheels must be possible with the parking brake.

The parking brake must be reset if the actuation stroke is greater than 10 teeth.

NOTE: Accurate adjustment of the parking brake is only possible if the parking brake Bowden cables and all moving parts on the parking brake move easily and function correctly.
Basic setting of the parking brake is required:

Parking brake shoes and attachment parts are replaced
Brake discs are replaced
In event of excessive actuation stroke (10 teeth)
When replacing parking brake Bowden cables

1. Adjusting instructions for brake shoes (basic setting)

Unclip GAITER for parking brake lever.

Lock adjuster unit (ASZE).

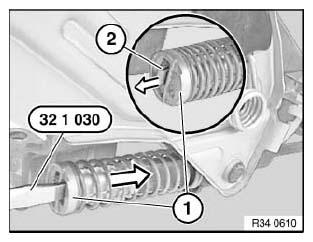

Actuate parking brake lever. Insert special tool 32 1 030. Press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).

Fig 1: Pressing Adjusting Spring Stop Using Special Tool (32 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.

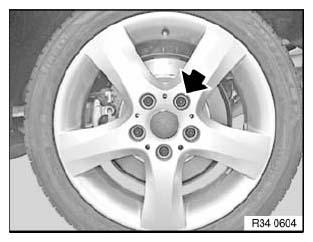

Completely unscrew one wheel stud on each rear wheel.

Installation:

Tightening torque 36 10 1AZ .

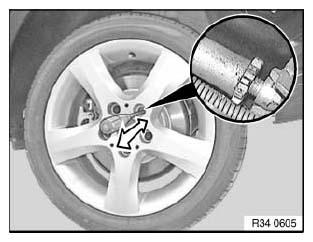

Turn wheel until adjustment screw is visible in tapped hole.

Fig 2: Locating Adjustment Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Turn adjusting screw with a screwdriver until wheel can not be turned anymore by hand.

Then at adjusting screw:

Release 185 dia. duo-servo brake 8 notches
Release 160 dia. duo-servo brake 9 notches

IMPORTANT: Basic adjustment with fewer than 8 notches on the duo-servo brake may lead to the brake shoes being damaged. Reducing the number of notches on the duo-servo brake to shorten lever travel is not permitted.

Fig 3: Turning Adjusting Screw Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock adjuster unit (ASZE).

Lever out restraining hook (2) with a suitable screwdriver.

Restraining hook (2) must detach from stop (1) of adjusting spring.

Fig 4: Pressing Adjusting Spring Stop Using Special Tool (32 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for BRAKE TESTING for test stand.

2. Adjusting instructions for parking brake Bowden cables

The parking brake lever must be applied 5 times with medium hand force.

3. Bedding in the duo-servo parking brake

The following braking-in procedures are applicable in case of insufficient braking effect or after replacing brake discs and/or brake shoes.
